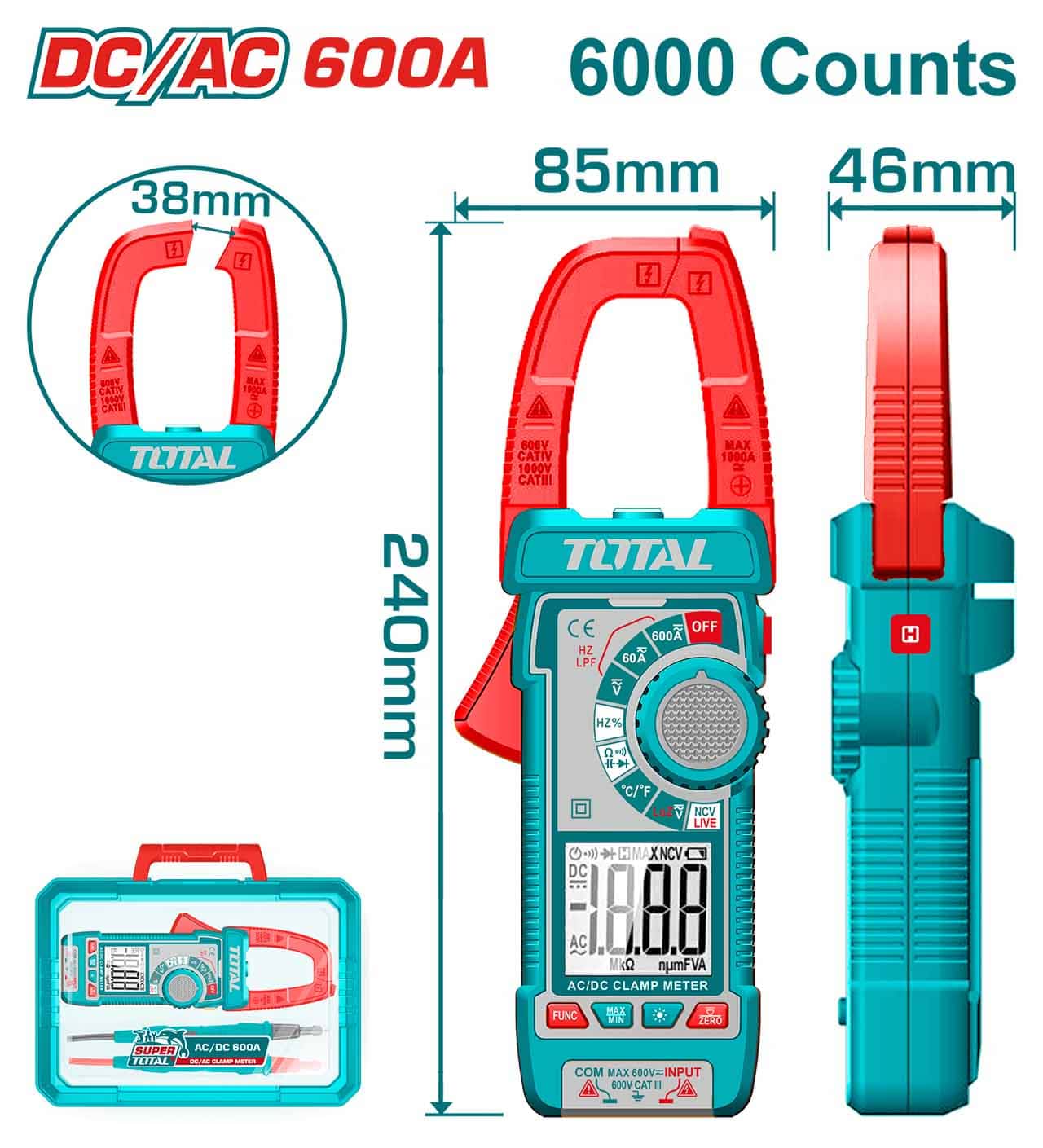

TMT766002 DC/AC Clamp Meter
Description
Description
Display True RMS 6000 Counts
Features,
Data Hold
Low impedance AC voltage (LowZ)
LPF (VFD)
Inrush current
Phase function
Diode test
Low battery indication
Auto power off
With 3 pcs LR03 AAA batteries
Specifications
| DC/AC Current | 60A / 600A |
| DC/AC Voltage | 600mV / 6V / 60V / 600V |
| Resistance | 600? / 6k? / 60k? / 600k? / 6M? / 60M? |
| Capacitance | 10nF / 100nF / 1000nF / 10uF / 1000uF / 10mF / 100mF |
| Frequency | 10Hz / 100Hz / 1000Hz / 10kHz / 100kHz / 1000kHz / 10MHz |
| Temperature | -40.0?~1000.0?(-40.0?~1832.0?) |
Shipping
| Model no. | TMT766002 |
| Weight | 1.07kg |
| Dimension | 15.2 x 25.2 x 5 cm |
Additional information
| Weight | 1.07 kg |
|---|---|
| Dimensions | 15.2 × 25.2 × 5 cm |
