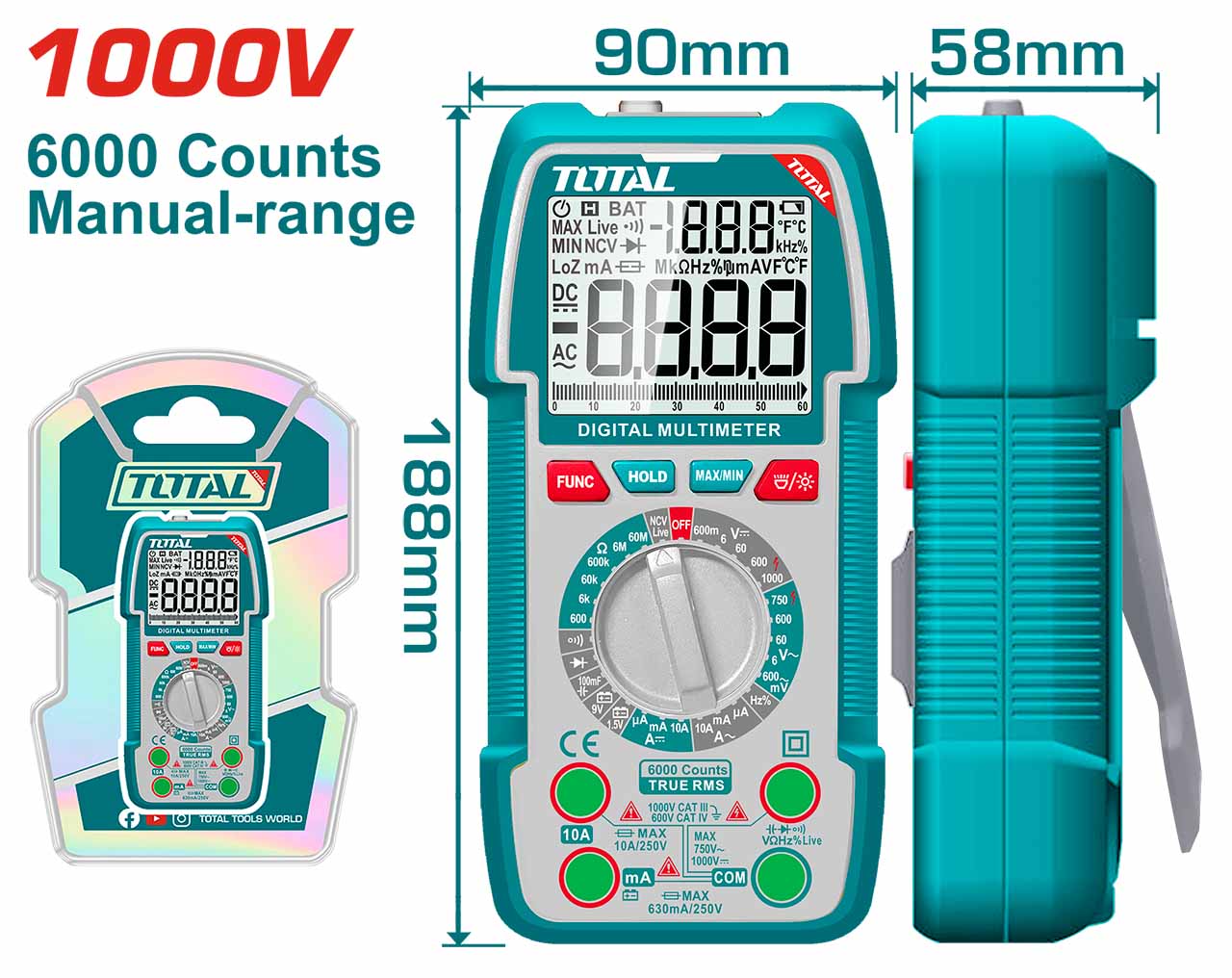

TMT5310002 Digital Multimeter
Description
Description
Display True RMS 6000 Counts
Features,
Light indicator for both Non-Contact Voltage (NCV) + Live or Neutral
Backlight and Flash Light Indicator
Diode test
Max/Min and Data hold
Backlight
Flash light
Lower battery indicator
Input jack LED indicator
Package comes with,
3 pcs LR03 AAA batteries
Specifications
| voltage | DC: 600mV / 6V / 60V / 600V / 1000V ±(0.5% +3), AC: 600mV / 6V / 60V / 600V / 750V ±(0.8%+5) |
| Current | DC: 600µA / 6mA / 60mA / 600mA / 10A ±(1.2% +3), AC: 600µA / 6mA / 60mA / 600mA / 10A ±(1.5% +3) |
| rated duty cycle | 1%~95% ±(3.0% +3) |
| frequency | 10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz |
| Capacitance | 10nF / 100nF / 1000nF / 10µF / 100µF / 1000µF ±(4.0%+5) / 10mF / 100mF |
| Resistance | 600? / 6k? / 60k? / 600k? / 6M? / 60M? |
Shipping
| Model no. | TMT5310002 |
| Weight | 1kg |
| Dimension | 16 x 24 x 5 cm |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 16 × 24 × 5 cm |
