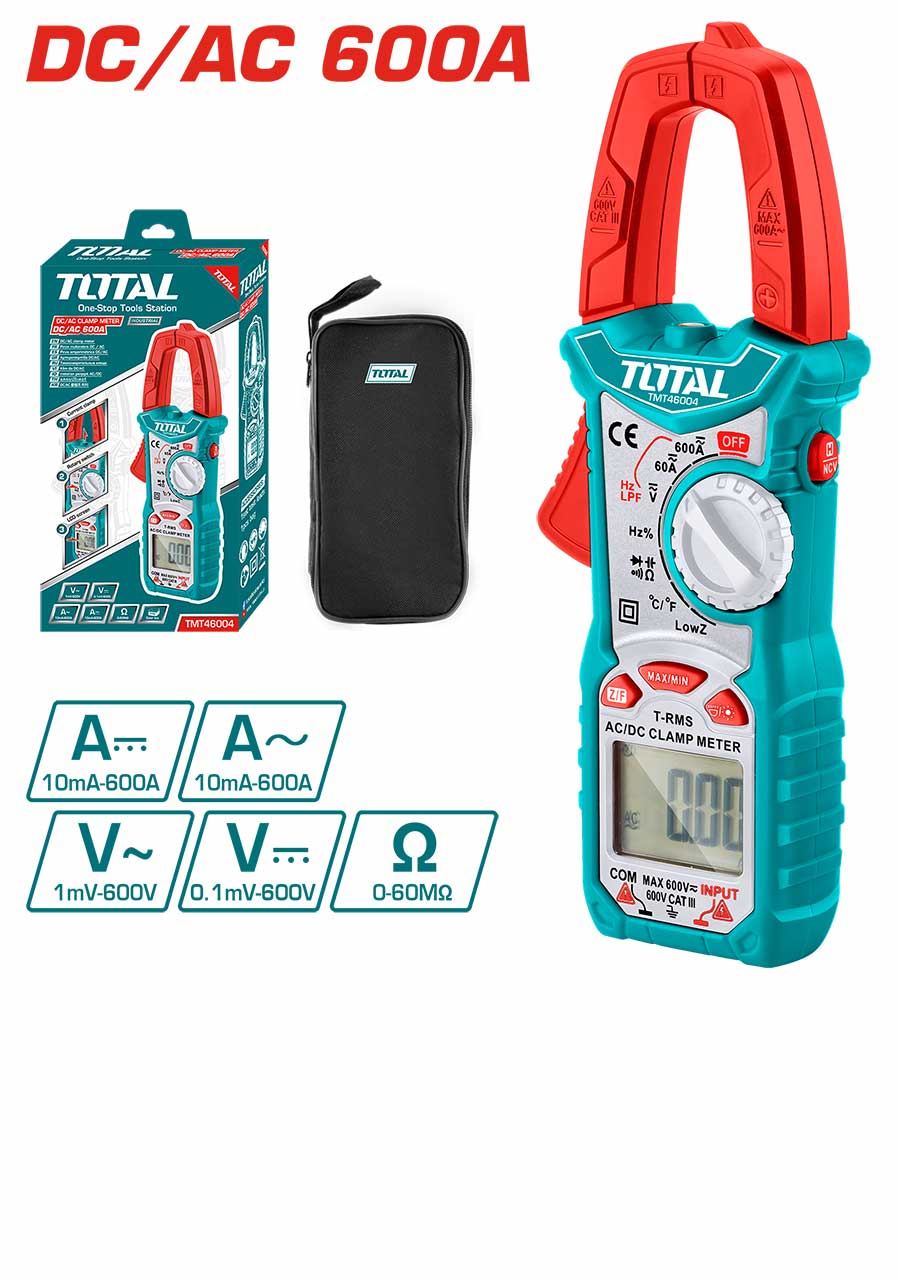

TMT46004 DC/AC Clamp Meter
Description
Description
Shipping
CATIII 600V
Display True RMS 6000 Counts
Features,
Backlight and Flash Light Indicator
Data Hold
Diode Test
Temperature
Low Battery Indicator
Specifications| voltage | DC: 600V ±(0.5% +3), AC: 600V ±(0.8% +5) |
| current | DC: 60A / 600A ±(2.5% +5), AC: 6A / 60A / 600A ±(2.5% +8) |
| rated duty cycle | 1%~99% ±(1.0% +2) |
| reading | Capacitance: 10nF / 100nF / 1nF / 10uF / 100uF / 1mF / 10mF / 100mF ±(4.0% +3) |
| resistance | 6k? / 60k? ±(1.0% +3) |
| Model no. | TMT46004 |
| Weight | 0.4kg |
| Dimension | 22.5 x 11.5 x 4.5 cm |
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 22.5 × 11.5 × 4.5 cm |
