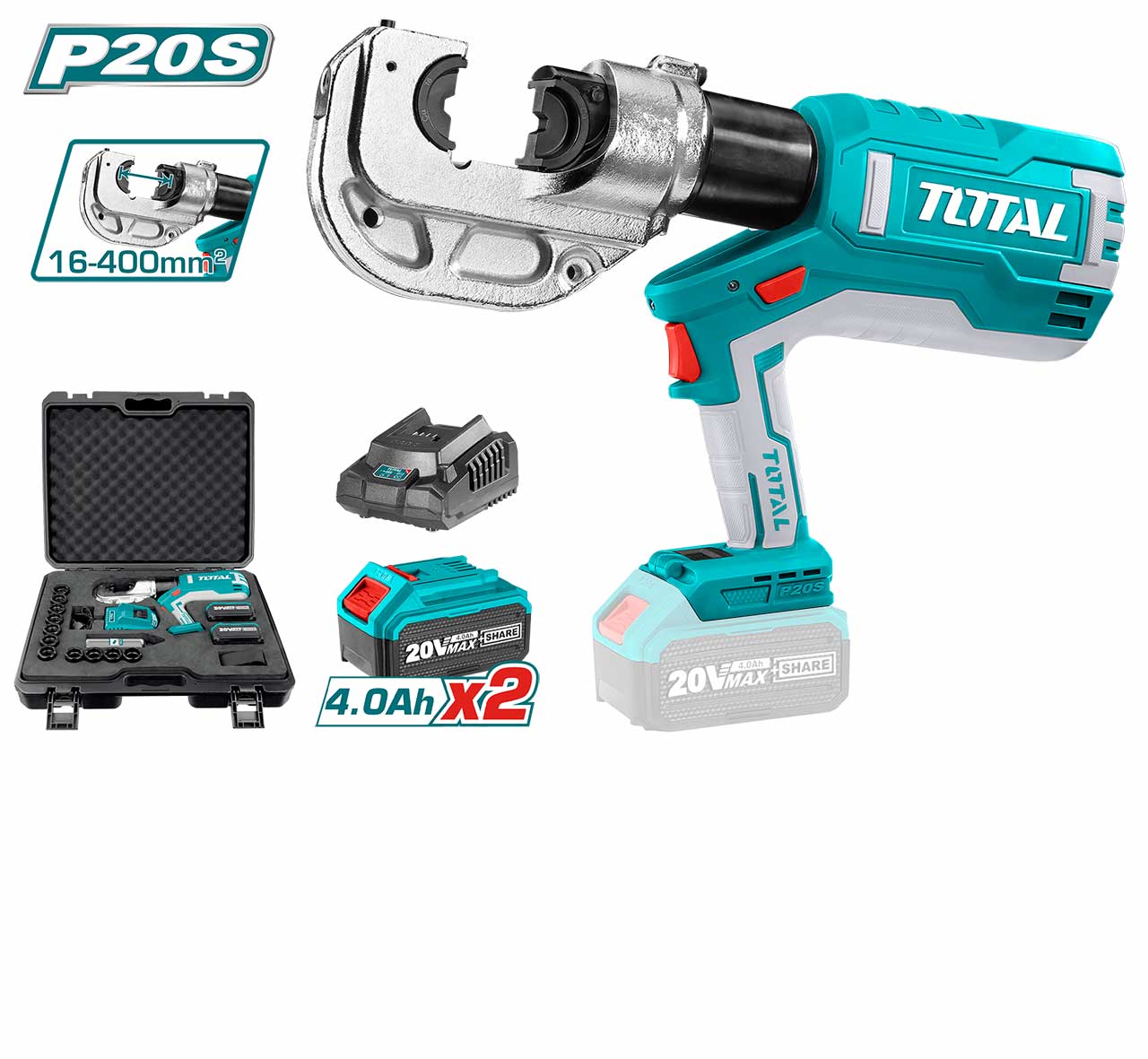

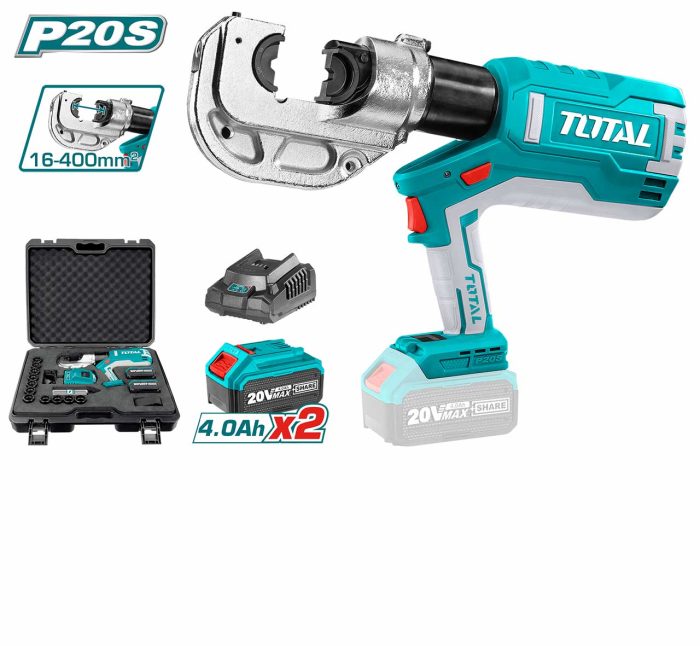

TCTLI2002 Li-ion Hydraulic Crimping Tool
Description
Description
Shipping
Rotatable head design with built-in LED display to provide usage count.
Pressing cycle last 6-18 seconds, depending on the size of the cable.
Package comes with,
12 pcs Crimping dies: 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²
2 pcs 20V 4.0Ah Batteries
1 pc Fast Intelligent Charger
1 set Cylinder seal
1 pc Protective seal
1 set Valves
1 pc Hydraulic fluid
1 pc Carrying strap
All items packed in a carrying case.
Specifications| voltage | 20V ? |
| battery | 2 pcs 20V Lithium-ion 4.0Ah batteries |
| charger | 1 pc 2 hours charger |
| charger volts | 100-240V ~ 50/60Hz |
| rated speed | 6s – 18s (depends on the size of the cable) |
| clamp size | 16mm? – 400mm? |
| working length | Stroke (Travel): 42mm |
| max force | 12kN |
| Model no. | TCTLI2002 |
| Weight | 15.9kg |
| Dimension | 55 x 49.3 x 13.5 cm |
Additional information
| Weight | 15.9 kg |
|---|---|
| Dimensions | 55 × 49.3 × 13.5 cm |
